Cle-Line® C22701

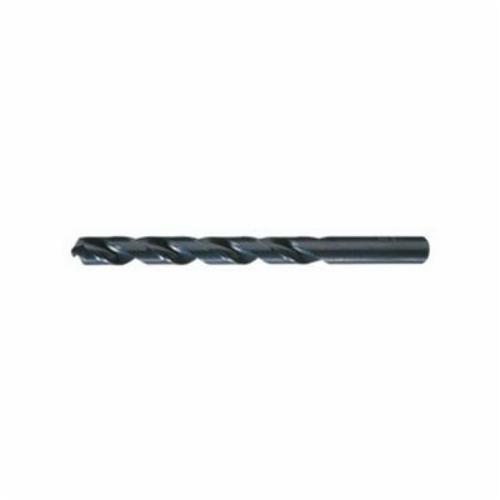

Cle-Line® Jobber Length Drill Bit, Series: 1899, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 3-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2-5/16 in Flute Length, 3/16 in Dia x 1-3/16 in L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron, Nodular Cast Iron and Aluminum

Application: General Purpose Drilling and Maintenance Applications

• Applicable Materials Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron, Nodular Cast Iron and Aluminum
• Cutting Depth 5XD
• Cutting Direction Right Hand
• Cutting Edge Material HSS
• Drill Diameter Measurement System Imperial
• Drill Size - Decimal Inch 0.1875 in
• Drill Size - Fraction 3/16 in
• Finish Black Oxide
• Flute Length 2-5/16 in
• Flute Type Right Spiral
• Material HSS
• Number of Flutes 2
• Overall Length 3-1/2 in
• Point Angle 118 deg
• Point Type Radial
• Series 1899
• Shank Size 3/16 in Dia x 1-3/16 in L
• Shank Type Straight
• Through Coolant (Yes/No) No

• HSS substrate with general purpose geometry
• Black oxide finish for increased wear resistance and improved lubricity
