Ingersoll Rand® ELK100-1ND100H-10-6-4CF15

Name: ELECTRIC CHAIN HOIST, 1 TON, 10 FT LIFT, PENDANT CONTROL, TOP HOOK MOUNT, DUAL SPEED, 460V - 3PH - 60 HZ, STEEL CHAIN CONTAINER (ING-ELK100-1ND100H-10-6-4CF15-@)
Brand: Ingersoll Rand®
SKU: ING-ELK100-1ND100H-10-6-4CF15
Price: 4948.36 USD
Availability: InStock

ELK Series Electric Chain Hoist, 1 Ton Capacity, 10 ft Lift, Pendant Control, Plain Trolley Mount, Dual Speed, 230V - 3ph - 60 Hz, Steel Chain Container

$5,004.46

BIPN:: ING-ELK100-1ND100H-10-6-4CF15
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

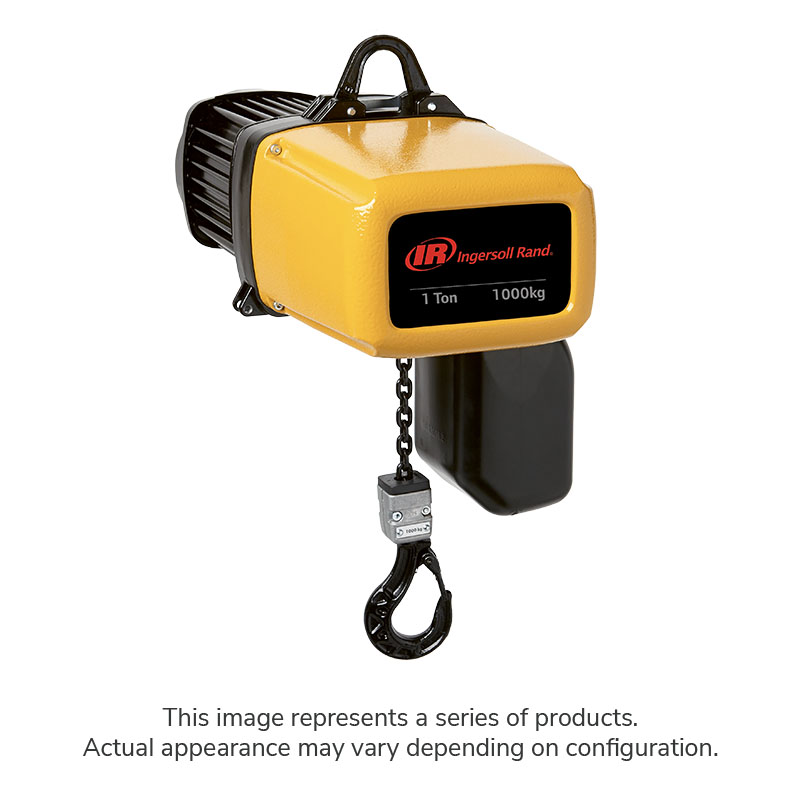

The ELK Series hoists brings you durability, modularity, flexibility packed in an extremely lightweight, modern design. Built to meet an A5/M5 duty cycle classification, the ELK hoist is designed for tough, industrial grade applications.

Applications: Steel warehousing, machine shops, fabricating plants, mills, foundries, & assembly plants

Series ELK Series
Load Capacity 1 ton
Suspension Type Trolley
Lifting Height 10 ft
Lift Speed 32 / 8 fpm
Headroom 26.96 in
Control Type Pendant
Chain Falls 1
Chain Manganese Phosphate Coated Steel Link Chain
Lower Hook Steel Snap Hook
Brake Type DC
Clutch Type Slip Clutch
Horsepower 3.7 hp
Speed Settings Dual speed
Voltage Rating 230 V - 3P - 60 Hz
Cord Length 15 ft

M5 or M4 Duty cycle rating (2m/M5 or 1Am/M4 FEM/ISO) designed for both industrial and manufacturing applications
Built-on motor with cooling fins and fan wheel for reduction in operating temperature and disassembly time
Modular design with interchangeable gear box for reduced maintenance time, parts and complexity
Extremely lightweight, compact profile allows for faster, safer installation and disassembly. Ideal for mobile applications.
IP65 rating with built in drains provides water resistance and dust tight protection. Great for outdoor use.
New custom chain profile with magnesium phosphate coating for corrosion resistance and extended life
3-stage helical gearing for quiet operation
Closed gearbox with permanent lubrication
5:1 safety rating
Custom configurations available (ATEX certified, food grade, tandem, VFD, wind turbine custom, etc)
Backed by 3 year warranty

Safety Information

Product Information Manual
