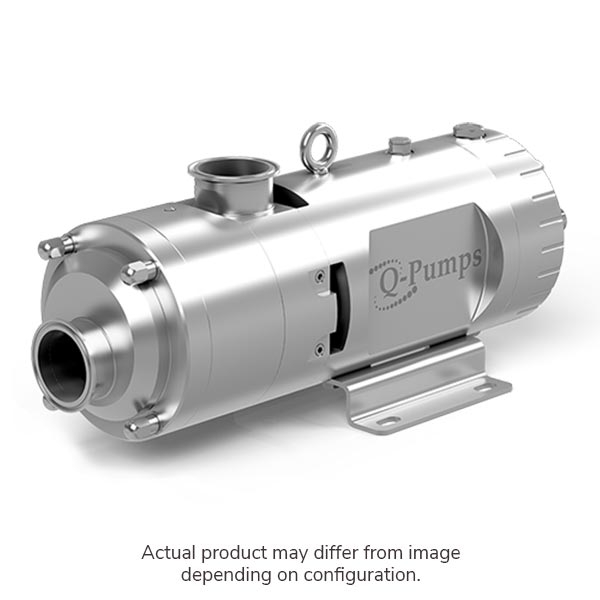

Q-Pumps® QTS202020-SS-31-ME-SS

Name: SANITARY TWIN SCREW PUMP, SINGLE MECH SEAL EPDM, 93 MAX GPM, 3 THREAD ROTORS, 2" CLAMP PORTS (QPU-QTS202020-SS-31-ME-SS-&)
Brand: Q-Pumps®
SKU: QPU-QTS202020-SS-31-ME-SS
Availability: OutOfStock

3-A, EHEDG Twin Screw Sanitary Pump, 2" Clamp Ports, 93 gpm, 3-Thread Screws, Mechanical Seal

BIPN:: QPU-QTS202020-SS-31-ME-SS
Availability:: Please call to place order
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

QTS Series Twin Screw Sanitary Pump, 2 in Inlet x 2 in Outlet Clamp Style Ports, 93 gpm Max Flow Rate, Twin 3-Thread Screws (Rotors), Single Mechanical Seal, EPDM Gasket, 316L Stainless Steel Housing, 3-A & EHEDG Certified

Bringing innovation to positive displacement.

The QTS is a bi-directional twin screw pump designed for 100% sanitary use. Additionally, it is ideal as a CIP and Process pump, which reduces time and maintenance costs. Ideal for products with high content of air and gas. Certifications: 3-A, FDA and EHEDG

Advantages:

Bidirectional: It is possible to recover the product from the line due to being reversible
Pulsation-free
100% high-speed CIP
Constant flow
Easy assembly and disassembly
Ideal for abrasive products
No contact between casing and rotor working at high pressures
Great suction capacity that eliminates low NPSH problems
Gentle handling of cut-sensitive products
100% drainable

Mechanical Seal Advantages:

Long-lasting
EHEDG certified
Can pump from underpressurized tanks (vacuum of -12psi/-.83 bar)
High pressure and high speed handling
Ideal for abrasive products
CIP

Pump Style Twin Screw
Series QTS
Inlet Size 2 in
Oulet Size 2 in
Connection Style Clamp
Seal Type Single Mechanical
Gasket Material EPDM
Wetted Parts Material 316L Stainless Steel
Meets Sanitary Standards 3A, EHEDG
Maximum Flow Rate 93 gpm
Temperature Rating 300 deg F

Self-priming
Manufactured in 100% stainless steel, wet parts in 316L SS
Handles products with up to 60% entrained air
Clamp connections
Single mechanical seal
Stainless steel rough use bearing box
Optimized rotors
Narrow tolerances for vacuum capacity
