Cle-Line® C63209

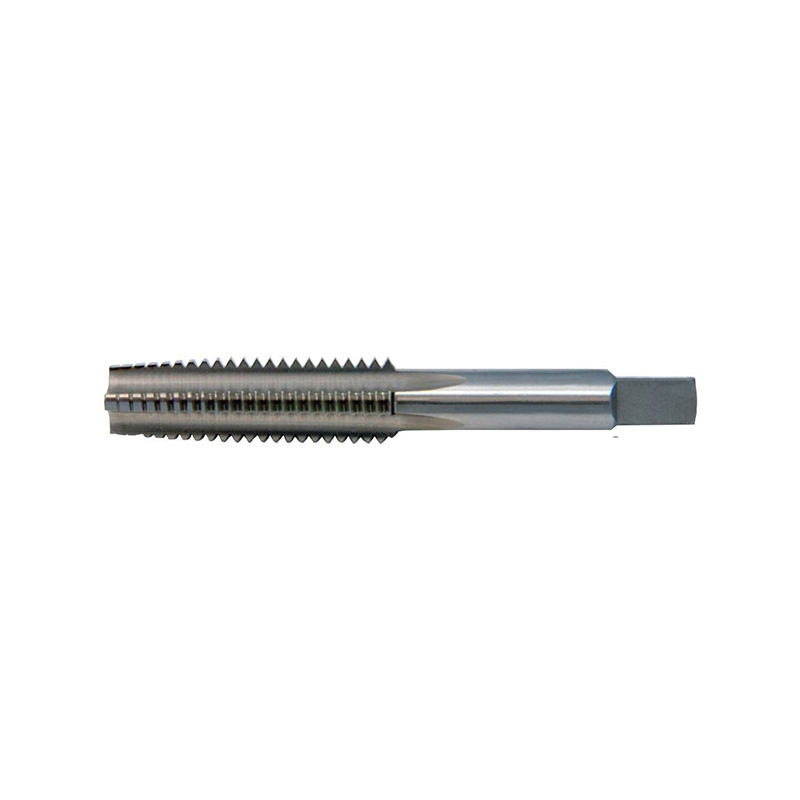

0401M General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M4x0.7 Thread, D4 Thread Limit, Tapered Chamfer, 4 Flutes, Bright, HSS

$9.10

BIPN:: CLE-C63209
UPC:: 697334632092
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Cle-Line® Straight Flute Hand Tap, General Purpose Standard, Series: 0401M, Measurement System: Metric, Ground Thread Standard, M4x0.7 Thread, Tapered Chamfer, 4 Flutes, HSS, Bright, Right Hand Cutting Direction, 19.05 mm Thread Length, 53.97 mm Overall Length, 4.27 mm Shank Diameter, Cast Iron, Steel and Non-Ferrous Materials Material Application, D4 Thread Limit

Application: For bottoming hole and maintenance applications

Chamfer Type Tapered
Cutting Direction Right Hand
Finish/Coating Bright
Material HSS
Material Application Cast Iron, Steel and Non-Ferrous Materials
Measurement System Metric
Number of Flutes 4
Overall Length 53.97 mm
Series 0401M
Shank Diameter 4.27 mm
Thread Length 19.05 mm
Thread Limit D4
Thread Size M4x0.7
Thread Standard Ground
Type General Purpose Standard
