Apollo™ 77-105-01

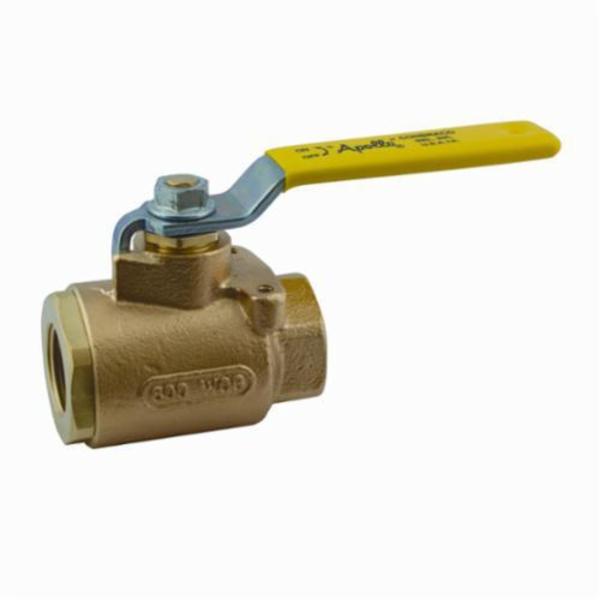

77-100 2-Piece Ball Valve, 1 in, FNPT, Bronze Body, Full Port, RPTFE Softgoods, Domestic

$102.28

BIPN:: APO-77-105-01
UPC:: 670750703683
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Apollo™ Ball Valve, 2-Piece, Series: 77-100, 1 in Nominal, FNPT, 600 psig CWP, 500 deg F, Full Port, Media: Water, Lever Actuator, Chrome Plated Brass Ball, 3.62 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic

Type 2-Piece
Series 77-100
Nominal Size 1 in
End Style FNPT
Pressure Rating 600 psig CWP
Temperature Rating 500 deg F
Port Type Full
Media Water
Actuator Type Lever
Ball Material Chrome Plated Brass
Inlet to Outlet Length 3.62 in
Top to Inlet Center 2.62 in
Body Material Bronze
Trim Material Brass Stem and RPTFE Seat
Softgoods Material RPTFE
Domestic/Import Domestic

Reinforced seats
Mounting pad for easy actuator mounting
Blow-out proof stem
Full port for full flow and minimum pressure drop
Hardened ball for wear resistance
100% factory tested
Vacuum service to 29 in Hg
Steel, zinc plated with vinyl lever and grip
ASTM B16 brass retainer
ASTM B16 brass gland nut
Steel, zinc plated lever nut
150 psig saturated steam
RPTFE stem packing

Instruction/Installation Manual

Catalog

Specification Sheet
