Apollo™ 73A-107-01

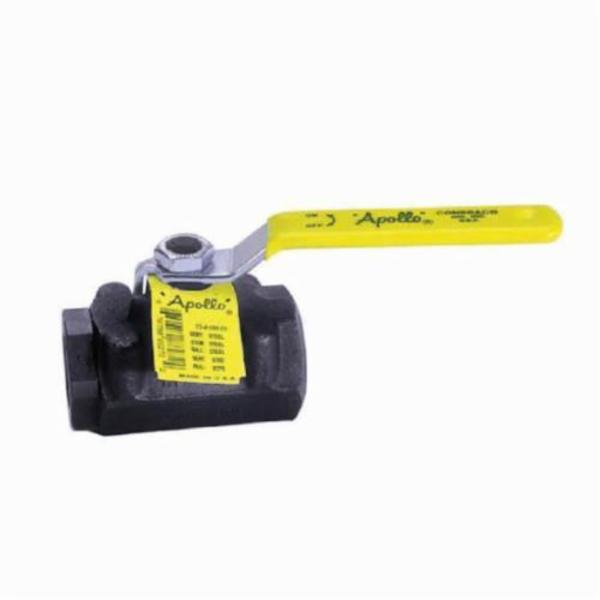

73A-100 2-Piece Ball Valve, 1-1/2 in, FNPT, Forged Carbon Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

BIPN:: APO-73A-107-01
UPC:: 670750882913
Availability:: Discontinued - Out of Stock
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Apollo™ Ball Valve, 2-Piece, Series: 73A-100, 1-1/2 in Nominal, FNPT, 1500 psig CWP, Standard Port, Media: Water, Lever Actuator, Carbon Steel Ball, 4.32 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Forged Carbon Steel Body, Carbon Steel Stem and RPTFE Seat Trim, MPTFE/PTFE Softgoods, Domestic

Type 2-Piece
Series 73A-100
Nominal Size 1-1/2 in
End Style FNPT
Pressure Rating 1500 psig CWP
Port Type Standard
Media Water
Actuator Type Lever
Ball Material Carbon Steel
Inlet to Outlet Length 4.32 in
Top to Inlet Center 3.12 in
Body Material Forged Carbon Steel
Trim Material Carbon Steel Stem and RPTFE Seat
Softgoods Material MPTFE/PTFE
Domestic/Import Domestic

Raised handle stops
Blow-out proof stem
Zinc phosphate corrosion protection
Vacuum service to 29 in Hg
Steel, zinc plated lever nut
ASTM A108-CS gland nut
ASTM A216-WCB retainer
Steel, zinc plated, with vinyl lever/grip
150 psig saturated steam
MPTFE stem packing and PTFE body seal
