Hammond Valve 6430D010212

Name: VALVE BUTTERFLY LUG DI BRONZE BUSH 2-1/2" (HVA-6430D-010-212)
Brand: Hammond Valve
SKU: HVA-6430D-010-212
Price: 333.88 USD
Availability: InStock

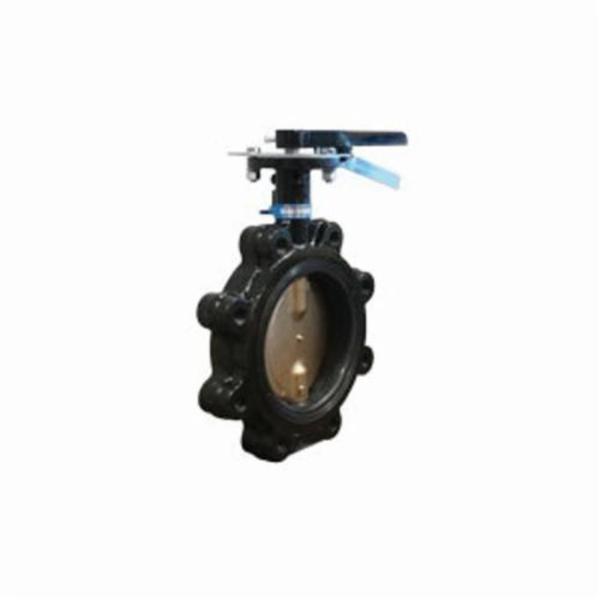

Hammond Valve Ultra Pure™ 6430D010212 Double Dead End Lug Style Butterfly Valve, 2-1/2 in, Ductile Iron Body, Buna-N/PTFE Softgoods

$333.88

BIPN:: HVA-6430D-010-212
UPC:: 84738291589
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Hammond Valve Ultra Pure™ Butterfly Valve, Lead Free Double Dead End Lug Style, Series: 6430, 2-1/2 in Nominal, 200 psi, 10-Position Lever-Lock Handle Actuator, 1.81 in Inlet to Outlet Length, 6 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Stem and Bronze Disc Trim, Buna-N/PTFE Softgoods, 19.94 in H

Type Double Dead End Lug Style
Series 6430
Nominal Size 2-1/2 in
Pressure Rating 200 psi
Actuator Type 10-Position Lever-Lock Handle
Inlet to Outlet Length 1.81 in
Top to Inlet Center 6 in
Body Material Ductile Iron
Trim Material 316 Stainless Steel Stem and Bronze Disc
Softgoods Material Buna-N/PTFE
Dimensions 19.94 in H

200 psig non-shock
Low lead valve for potable water
Bubble tight shut-off
Lead free refers to the wetted surface of the pipe, fittings and fixtures in potable water systems that have a weighted average lead content =0.25%
Bi-directional dead end service to 200 psig max
Buna-N liner
