Spears® 721311-060

Spears® Butterfly Valve, Lug Insert, 6 in Nominal, 150 psi, 140 deg F, Lever Handle Actuator, 11-3/32 in Top to Inlet Center, CPVC Body, Gray, 12 in OD, Domestic

Spears® patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal-off. Ideally suited for flow control or throttling, this high-performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications. Available in IPS sizes 1-1/2 - 14 in Standard or 1-1/2 - 12 in true lug (factory installed lugs) style.

• Type Lug Insert
• Nominal Size 6 in
• Pressure Rating 150 psi
• Temperature Rating 140 deg F
• Actuator Type Lever Handle

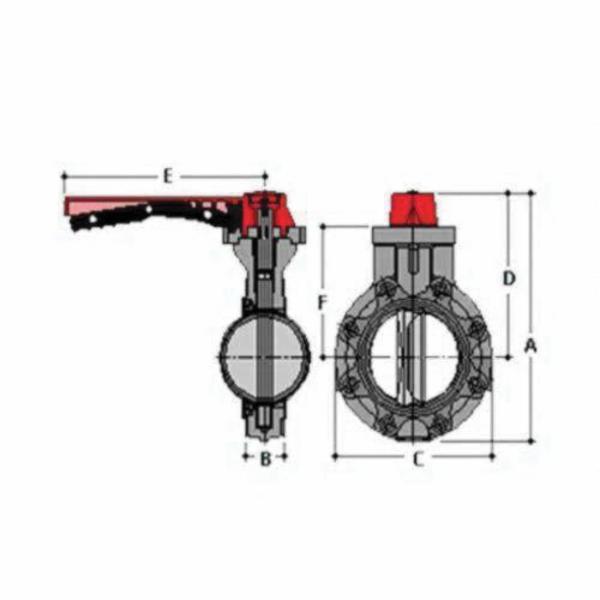

• Top to Inlet Center 11-3/32 in
• Body Material CPVC
• Color Gray
• Dimensions 12 in OD
• Domestic/Import Domestic

• Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
• Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
• Interlocking body and seat prevents wash-out or blow-out
• Reversible high impact polypropylene lever handle with 7-position stops and built-in lockout (standard handle on 1-1/2 - 8 in valves not available on 10 in and larger valves
• High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator
• Standard valve accepts field-installable lug inserts set option
• Lug insert style valve has factory installed stainless steel 316 or zinc plated steel lug inserts
• True lug design has factory installed zinc plated or 316SS lugs and is specially designed for connection to either side of valve
