Chicago-Latrobe® 56744

Name: COUNTERSINK SINGLE FLUTE 3/8" SHANK 82 DEG 3/4" (CHL-56744-@)
Brand: Chicago-Latrobe®
SKU: CHL-56744
Availability: InStock

209SF Single End Countersink, 3/4 in Dia Body, 1/2 in Dia Shank, 1 Flutes, 82 deg Included, HSS

$0.00

BIPN:: CHL-56744
UPC:: 662355567449
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

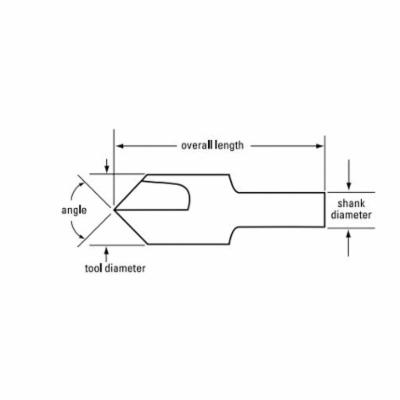

Chicago-Latrobe® Countersink, Single End, Series: 209SF, 3/4 in Diameter Body, 2-5/8 in Overall Length, Straight Shank, 1/2 in Shank Diameter, 1 Flutes, Right Hand Cutting Direction, 82 deg Included Angle, 41 deg Centerline Angle, HSS, Steam Oxide

Body Diameter 3/4 in
Centerline Angle 41 deg
Cutting Direction Right Hand
Finish Steam Oxide
Included Angle 82 deg
Material HSS
Number of Flutes 1
Overall Length 2-5/8 in
Series 209SF
Shank Diameter 1/2 in
Shank Type Straight
Type Single End

Designed to countersink, chamfer, deburr, and enlarge holes in sheet metal
Use single flute countersinks in holes too small for multi-flute countersinks
Operate at high speeds and light feeds for best results
Black oxide surface finish increases wear resistance and adds lubricity, improving chip flow
