Enerpac® RC-102

Enerpac® Hydraulic Cylinder, General Purpose Industry Standard Single Acting, Series: RC, 10 ton, 2.13 in Stroke, 10000 psi, Steel Housing, Baked Enamel

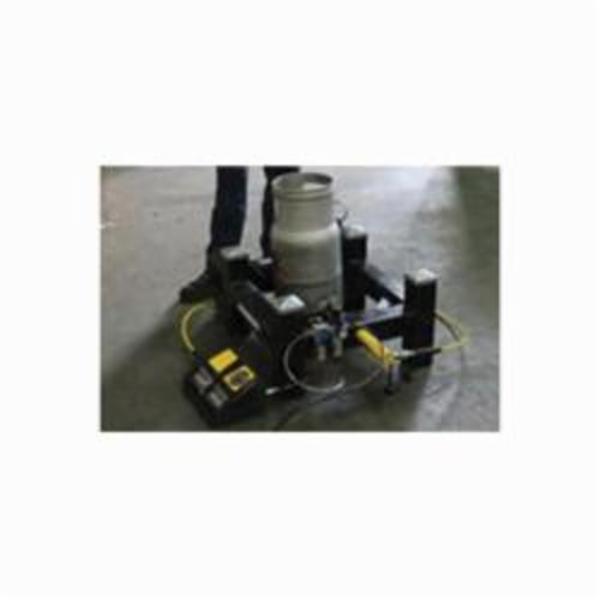

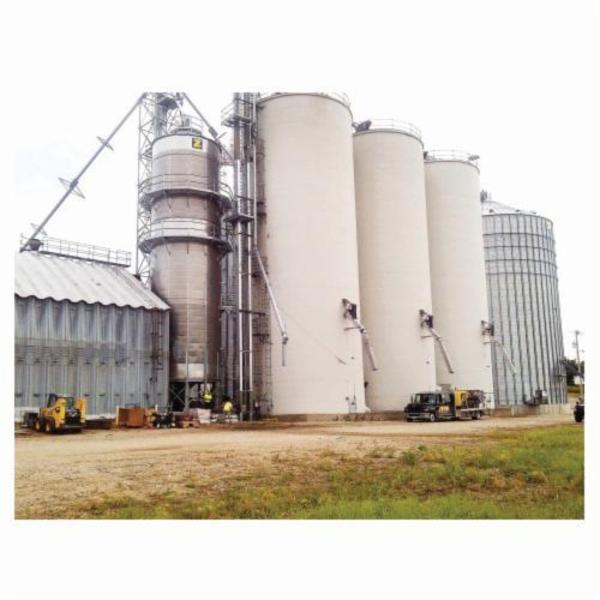

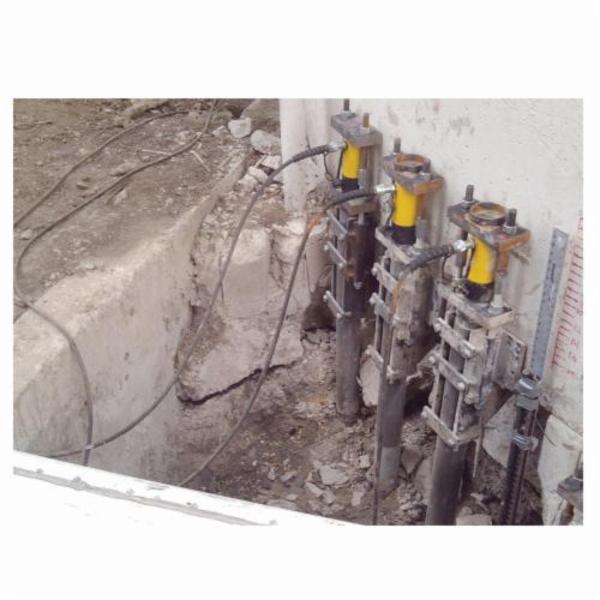

Enerpac® hydraulic cylinders are available in hundreds of different configurations. Whatever the industrial application lifting, pushing, pulling, bending, holding, whatever the force capacity, stroke length, or size restrictions, single- or double-acting, solid or hollow plunger, you can be sure that Enerpac® has the cylinder to suit your high force application.

• Type General Purpose Industry Standard Single Acting
• Series RC
• Capacity 10 ton
• Stroke Length 2.13 in
• Pressure Rating 10000 psi
• Housing Material Steel
• Finish Baked Enamel

• RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
• Unique GR2 bearing design, reduces wear and extending life
• Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
• Designed for use in all positions
• High strength alloy steel for durability
• Redesigned cylinder thread protector for ease of use
• Heavy duty, pretension spring improves retraction speed
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contamination, extending cylinder life
• All RC cylinders are equipped with hardened removable grooved saddles
• The exclusive GR2 is a unique bearing design on RC series DUO cylinders which absorbs eccentric load stresses to protect your cylinder against abrasion, over-extending or plunger blow-outs and jamming or top-end mushrooming
• 1.69 in cylindrical bore diameter
• 3/4 in base to advance port
• 1.38 in saddle diameter
• 1/4 in saddle protruding from plunger
• 1-8 UN plunger internal thread
• 3/4 in plunger thread length
• 1.56 in bolt circle
• 5/16-18 UN thread
• 1/2 in thread depth
