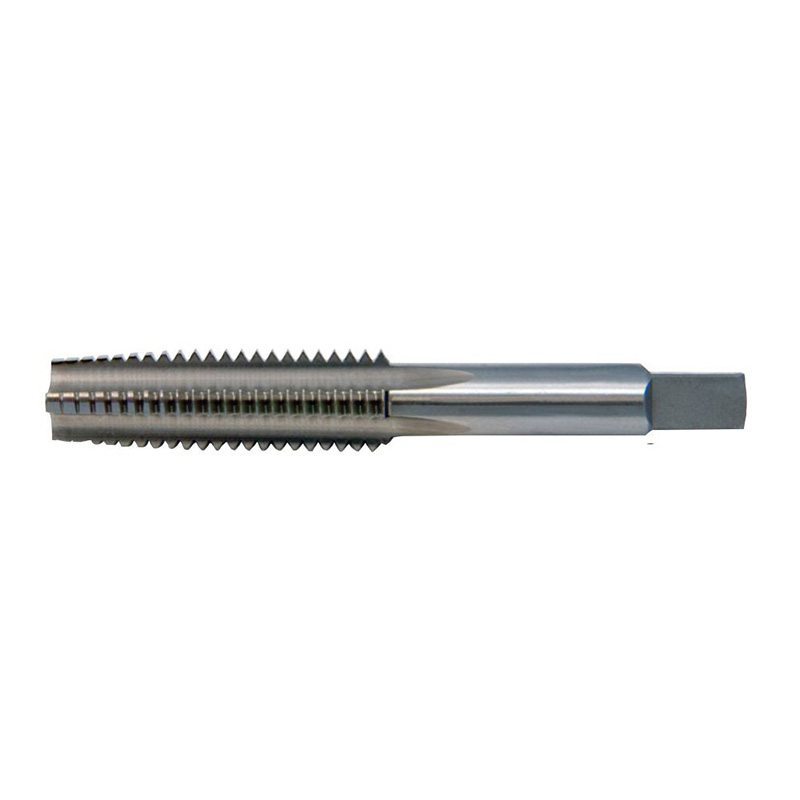

Cle-Line® C62025

Cle-Line® Straight Flute Hand Tap, General Purpose Standard, Series: 0401, Measurement System: Imperial, Ground/UNC Thread Standard, #12-24 Thread, Tapered Chamfer, 4 Flutes, HSS, Uncoated, Right Hand Cutting Direction, 15/16 in Thread Length, 2-3/8 in Overall Length, 0.22 in Shank Diameter, Cast Iron, Steel and Non-Ferrous Materials Material Application, H3 Thread Limit

Application: For bottoming, through hole and maintenance applications

• Chamfer Type Tapered
• Cutting Direction Right Hand
• Finish/Coating Uncoated
• Material HSS
• Material Application Cast Iron, Steel and Non-Ferrous Materials
• Measurement System Imperial
• Number of Flutes 4
• Overall Length 2-3/8 in
• Series 0401
• Shank Diameter 0.22 in
• Thread Length 15/16 in
• Thread Limit H3
• Thread Size #12-24
• Thread Standard UNC
• Type General Purpose Standard

• Ground Thread
