Apollo™ 76-103-01-A

Name: VALVE BALL STANDARD PORT CF8M SS 2000 LB WOG 1/2" (APO-76-103-01A-&&)
Brand: Apollo™
SKU: APO-76-103-01A
Price: 85.78 USD
Availability: InStock

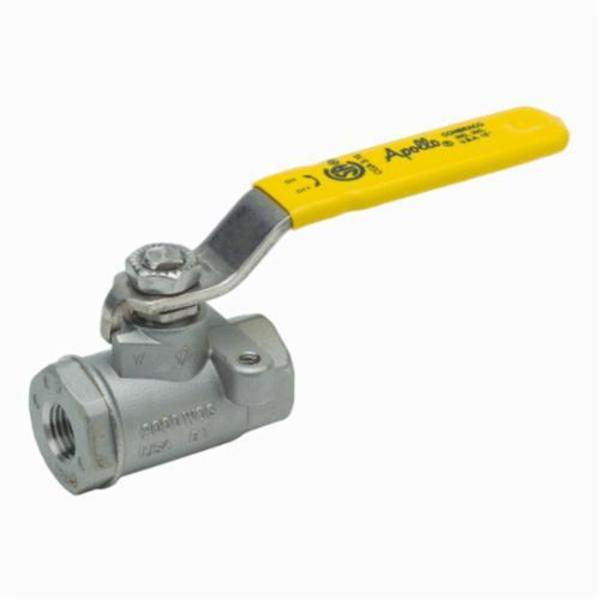

76-100 2-Piece Ball Valve, 1/2 in, FNPT, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

$85.78

BIPN:: APO-76-103-01A
UPC:: 670750113826
Availability:: Discontinued - Limited Stock Available
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Apollo™ Ball Valve, 2-Piece, Series: 76-100, 1/2 in Nominal, FNPT, 2000 psig CWP, Standard Port, Media: Water, Lever Actuator, 316 Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.79 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and PTFE Seat Trim, MPTFE/PTFE Softgoods, Domestic

Type 2-Piece
Series 76-100
Nominal Size 1/2 in
End Style FNPT
Pressure Rating 2000 psig CWP
Port Type Standard
Media Water
Actuator Type Lever
Ball Material 316 Stainless Steel
Inlet to Outlet Length 2.23 in
Top to Inlet Center 1.79 in
Body Material Stainless Steel
Trim Material 316 Stainless Steel Stem and PTFE Seat
Softgoods Material MPTFE/PTFE
Domestic/Import Domestic

Investment cast components
Mounting pad for easy actuator mounting
Blow-out proof stem
Stainless steel lever and nut
Vacuum service to 29 in Hg
304 stainless steel with vinyl lever and grip
ASTM A351-CF8M stainless steel or A276-316 stainless steel retainer
ASTM A276-316 stainless steel gland nut
18-8 stainless steel lever nut
PTFE body seal
Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
150 psig saturated steam
MPTFE stem packing and PTFE body seal

Instruction/Installation Manual

Catalog

Specification Sheet
