Milwaukee Valve 1570CB2SCY060

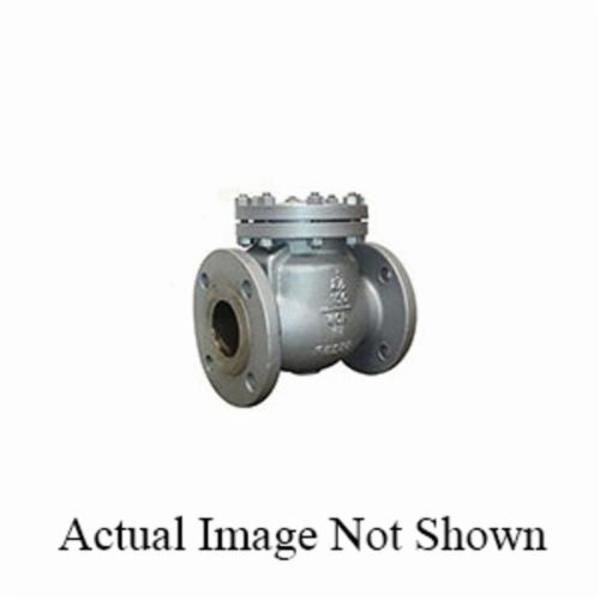

Milwaukee Valve 1570CB2SCY060 Horizontal Swing Check Valve, 6 in, Flange, 150 lb, Cast Steel Body

$1,910.42

BIPN:: HVA-1570CB2SCY060
UPC:: 697988671423
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Prop 65 - WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and/or reproductive harm - www.P65Warnings.ca.gov

Milwaukee Valve Swing Check Valve, Horizontal, Series: 1570, 6 in Nominal Size, Flange, 150 lb, -20 to 800 deg F, 14 in Inlet to Outlet Length, 12.8 in Top to Inlet Center, Cast Steel Body, CR13 Trim, Softgoods: Hardfaced CoCr Seat

Type Horizontal
Series 1570
Nominal Size 6 in
End Style Flange
Pressure Class 150 lb
Temperature Rating -20 to 800 deg F
Inlet to Outlet Length 14 in
Top to Inlet Center 12.8 in
Body Material Cast Steel
Trim Material CR13
Softgoods Material Hardfaced CoCr Seat

WCB standard trim 13 CR to hard facing
Pinned rotating disc for improved sealing
